MEAN WELL RS SERIES

Sort By:
POWER SUPPLY AC/DC MEANWELL 25 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
15.90€
POWER SUPPLY AC/DC MEANWELL 75 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
26.90€
POWER SUPPLY AC/DC MEANWELL 50 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
23.90€
POWER SUPPLY AC/DC MEANWELL 150 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
35.90€
POWER SUPPLY AC/DC MEANWELL 100 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
29.90€
POWER SUPPLY AC/DC MEAN WELL 35 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
19.90€
RS-25-X (RS-25-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.

TECHNICAL SPECIFICATIONS:

Voltage input: 88~264VAC - 125~373VDC
Power: 25 watts
Models constant voltage output: 3,3 - 5 - 10 - 12 - 15 - 24 - 48VDC
Model output current (RS-25-3.3): 6A @ 3,3VDC

Model output current (RS-25-5):
 5A @ 5VDC
Model output current (RS-25-10): 2A @ 10VDC
Model output current (RS-25-12): 2,1A @ 12VDC
Model output current (RS-25-15): 1,7A @ 15VDC
Model output current (RS-25-24): 1,1A @ 24VDC
Model output current (RS-25-48): 0,57A @ 48VDC
Dimensions: 51mm x 78mm x H 28mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:

  • No load power consumption <0,5W.
  • Withstand 5G vibration test.
  • High operating temperature up to 70°C.
  • Automatic input voltage adjustment.
  • Screw terminals.
  • Free air convection, super silent.
  • Metal housing with height <28mm.

DATA SHEET:

 photo RS-25-page-001_zpszrie0gg5.jpg photo RS-25-page-002_zpspp38cvxv.jpg
POWER SUPPLY AC/DC MEANWELL 25 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
15.90€
RS-75-X (RS-75-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.

TECHNICAL SPECIFICATIONS:

Voltage input: 88~264VAC - 125~373VDC
Power: 75 watts
Models constant voltage output: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Model output current (RS-75-3.3): 15A @ 3,3VDC

Model output current (RS-75-5):
 12A @ 5VDC
Model output current (RS-75-12): 6A @ 12VDC
Model output current (RS-75-15): 5A @ 15VDC
Model output current (RS-75-24): 3,2A @ 24VDC
Model output current (RS-75-48): 1,5A @ 48VDC
Dimensions: 120mm x 98mm x H 38mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:

  • No load power consumption <0,5W.
  • Withstand 5G vibration test.
  • High operating temperature up to 70°C.
  • Automatic input voltage adjustment.
  • Screw terminals.
  • Free air convection, super silent.
  • Metal housing with height <28mm.

DATA SHEET:

 photo RS-75-page-001_zpssapyqp8v.jpg photo RS-75-page-002_zpslv2a2ksn.jpg
POWER SUPPLY AC/DC MEANWELL 75 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
26.90€
RS-50-X (RS-50-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.

TECHNICAL SPECIFICATIONS:

Voltage input: 88~264VAC - 125~373VDC
Power: 50 watts
Models constant voltage output: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Model output current (RS-50-3.3): 10A @ 3,3VDC

Model output current (RS-50-5):
 10A @ 5VDC
Model output current (RS-50-12): 4,2A @ 12VDC
Model output current (RS-50-15): 3,4A @ 15VDC
Model output current (RS-50-24): 2,2A @ 24VDC
Model output current (RS-50-48): 1,1A @ 48VDC
Dimensions: 97mm x 99mm x H 36mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:

  • No load power consumption <0,5W.
  • Withstand 5G vibration test.
  • High operating temperature up to 70°C.
  • Automatic input voltage adjustment.
  • Screw terminals.
  • Free air convection, super silent.
  • Metal housing with height <36mm.

DATA SHEET:

 photo RS-50-page-001_zps3lf1e9ef.jpg photo RS-50-page-002_zpssmdkoaxa.jpg
POWER SUPPLY AC/DC MEANWELL 50 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
23.90€
RS-150-X (RS-150-X)
DESCRIZIONE:
L'ALIMENTATORE E' UN ELEMENTO INDISPENSABILE E FONDAMENTALE IN OGNI TIPO DI APPARECCHIO ELETTRONICO. SCEGLIERE ACCURATAMENTE L'ALIMENTATORE CHE ABBIA I REQUISITI GIUSTI DI POTENZA, AFFIDABILITA' E RESISTENZA SIGNIFICA METTERE IN SICUREZZA UNA PARTE FONDAMENTALE DEL SISTEMA RIDUCENDO AL MINIMO I FATTORI DI RISCHIO E MIGLIORANDO LE PERFORMANCE.

SPECIFICHE TECNICHE:

ALIMENTAZIONE: 88~264VDC - 125~373VDC
POTENZA: 75 WATT
TENSIONE COSTANTE OUT: 3,3 - 5 - 12 - 15 - 24 - 48VDC
CORRENTE OUT (RS-35-3.3): 15A @ 3,3VDC

CORRENTE OUT (RS-35-5):
 12A @ 5VDC
CORRENTE OUT (RS-35-12): 6A @ 12VDC
CORRENTE OUT (RS-35-15): 5A @ 15VDC
CORRENTE OUT (RS-35-24): 3,2A @ 24VDC
CORRENTE OUT (RS-35-48): 1,5A @ 48VDC
DIMENSIONI: 120mm x 98mm x H 38mm
GRADO DI PROTEZIONE: IP20
CERTIFICAZIONE: CE - RoHS - FCC - UL - TUV - EMI
PROTEZIONE: SOVRACCARICO, CORTOCIRCUITO E TEMPERATURA CON RIPRISTINO AUTOMATICO.
VARIE:

  • SELEZIONE AUTOMATICA VOLTAGGIO INGRESSO.
  • FANLESS.
  • CONTENITORE METALLICO.

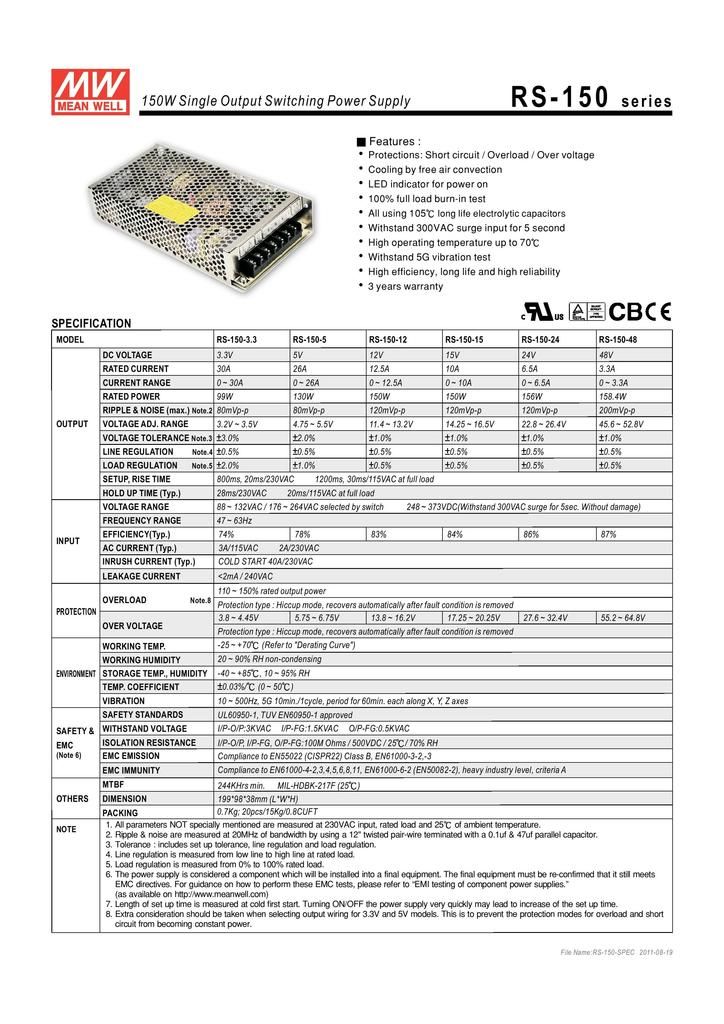

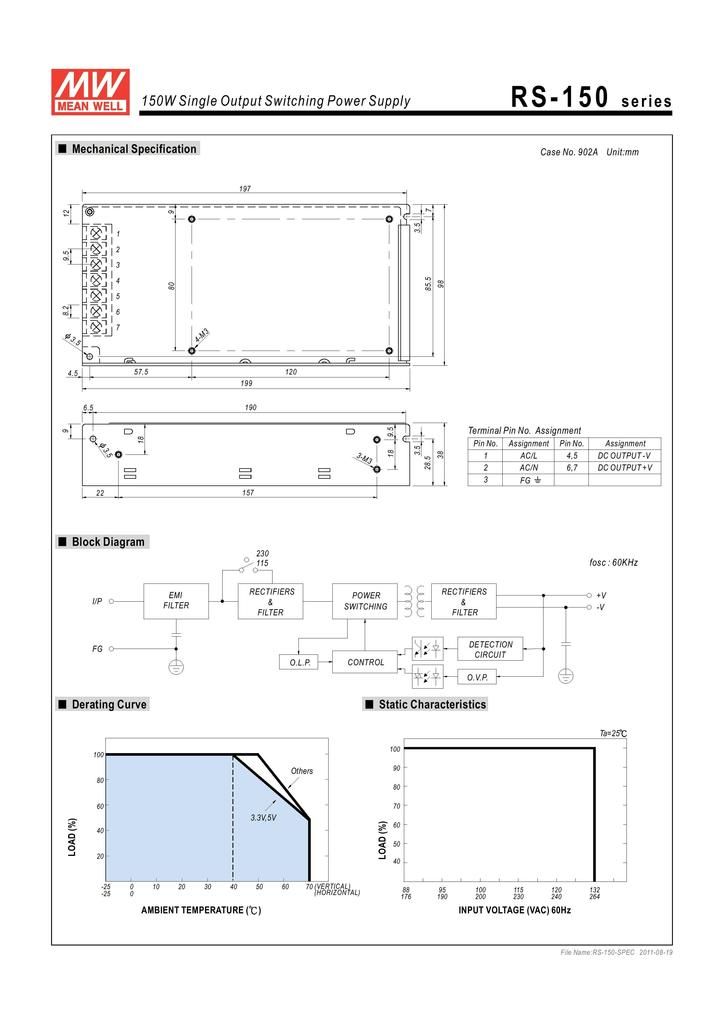

SCHEDA TECNICA:


 photo RS-75-page-001_zpssapyqp8v.jpg photo RS-75-page-002_zpslv2a2ksn.jpg
POWER SUPPLY AC/DC MEANWELL 150 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
35.90€
RS-100-X (RS-100-X)
DESCRIZIONE:
L'alimentatore è un elemento indispensabile e fondamentale in ogni tipo di apparecchio elettronico. Scegliere accuratamente l'alimentatore che abbia i requisiti giusti di potenza, affidabilità e resistenza significa mettere in sicurezza una parte fondamentale del sistema riducendo al minimo i fattori di rischio e migliorando le performance. Gli alimentatori serie RS sono molto robusti, indicati in macchine dove sono presenti elevate sollecitazioni meccaniche, alte temperature fino a 70° e tensioni in ingresso 110-220 volt con elevati picchi di sovratensioni.

SPECIFICHE TECNICHE:

Alimentazione: 88~264VAC - 125~373VDC
Potenza: 100 watt
Modelli con tensione costante out: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Corrente out modello (RS-100-3.3): 20A @ 3,3VDC

Corrente out modello (RS-100-5):
 16A @ 5VDC
Corrente out modello (RS-100-12): 8,5A @ 12VDC
Corrente out modello (RS-100-15): 7A @ 15VDC
Corrente out modello (RS-100-24): 4,5A @ 24VDC
Corrente out modello (RS-100-48): 2,3A @ 48VDC
Dimensioni: 152mm x 97mm x H 38mm
Grado di protezione: IP20
Certificazione: CE - RoHS - FCC - UL - TUV - EMC - CB
Protezione: Sovraccarico, cortocircuito, sovra-temperatura. Ripristino automatico.
Varie:

  • Basso consumo a vuoto <0,5W.
  • Indicato per macchine in movimento, supporta vibrazioni con accelerazione fino a 5G.
  • Può lavorare con temperature fino a 70°C.
  • Selezione automatica voltaggio ingresso.
  • Solidi terminali a vite.
  • Senza ventola, super silenzioso.
  • Contenitore di metallo con altezza <38 mm.

SCHEDA TECNICA:

 photo RS-100-page-001_zpsslp12hh1.jpg> photo RS-100-page-002_zps6scuqmkf.jpg
POWER SUPPLY AC/DC MEANWELL 100 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
29.90€
RS-35-X (RS-35-X)
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. Meanwell RS series power supplies are very strong, indicated in machines where there are high mechanical stress, high temperatures up to 70°C, and input voltage 110-220 volts with high peak voltages.

TECHNICAL SPECIFICATIONS:

Voltage input: 88~264VAC - 125~373VDC
Power: 35 watts
Models constant voltage output: 3,3 - 5 - 12 - 15 - 24 - 48VDC
Model output current (RS-35-3.3): 7A @ 3,3VDC

Model output current (RS-35-5):
 7A @ 5VDC
Model output current (RS-35-12): 3A @ 12VDC
Model output current (RS-35-15): 2,4A @ 15VDC
Model output current (RS-35-24): 1,5A @ 24VDC
Model output current (RS-35-48): 0,8A @ 48VDC
Dimensions: 82mm x 99mm x H 35mm
IP protection: IP20
Certifications: CE - RoHS - FCC - UL - TUV - EMC - CB
Protection: Short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:

  • No load power consumption <0,5W.
  • Withstand 5G vibration test.
  • High operating temperature up to 70°C.
  • Automatic input voltage adjustment.
  • Screw terminals.
  • Free air convection, super silent.
  • Metal housing with height <35mm.

DATA SHEET:

 photo RS-35-page-001_zps8iytg8ac.jpg photo RS-35-page-002_zpst1gq1bug.jpg
POWER SUPPLY AC/DC MEAN WELL 35 WATT RS SERIE - SINGLE OUTPUT - FAN LESS
Add to Cart
19.90€
